Application

■ Production line workbench

■ Maintenance workbench

■ Teaching laboratory

■ Automated test equipment

Specifications

Display	4.3-inch LCD color display
Display Digits	TH1963	1199999 digits reading
Measurement Parameters	DC voltage, AC voltage, DC current, AC current, DC resistance, capacitance, frequency, breakover, diode, temperature
Display Mode	Direct reading, histogram, bargraph, trendchart
Measurement Speed	Upto1000times/s
Math Function	Reset function, Min/Max/Average/Standard deviation, dB, dBm
Common Features	Range	Auto/Manual
	Trigger mode	LOCAL: AUTO/SINGLE/EXT. REMOTE:IMMEDIATE/BUS/EXT
	Reading hold	Yes
	Limit measurement	HI, Lo and IN(PASS), with sound beep
Technical Index	Uncertainty: ±(%ofreading+%ofrange), TCAL=25°C
Parameters	Range/TestRange	Frequency	Highest annual accuracy TCAL±5°C	Highest temperature coefficient/°C
DC Voltage	100.0000mV-1000.000V		0.0035+0.0005	0.0005+0.0001
True RMS AC Voltage	100.000mV-750.000V	3-5Hz	1.00+0.03	0.100+0.003
		5-10Hz	0.35+0.03	0.035+0.003
		10Hz-20kHz	0.06+0.03	0.005+0.003
		20-50kHz	0.12+0.05	0.011+0.005
		50-100kHz	0.60+0.08	0.060+0.008
		100-300kHz	4.00+0.50	0.200+0.020
DC Resistance	10Ω-100MΩ Testcurrent: 10mA-500nA		0.010+0.001	0.0006+0.0001
DC Current	100uA-100mA		0.050+0.005	0.0020+0.0005
	1A		0.100+0.010	0.0050+0.0010
	3A		0.200+0.020	0.0050+0.0020
	10A		0.120+0.010	0.0050+0.0010
AC Current	100μA-1A	3kHz-5kHz	0.10+0.04	0.015+0.006
	100μA-1A	5kHz-10kHz	0.10+0.04	0.030+0.006
	3A	3Hz-5kHz	0.23+0.04	0.015+0.006
	3A	5kHz-10kHz	0.23+0.04	0.030+0.006
	10A	3Hz-5kHz	0.15+0.04	0.015+0.006
	10A	5kHz-10kHz	0.15+0.04	0.030+0.006
Frequency	3Hz-10Hz		0.1	0.0002
	10Hz-100Hz		0.03	0.0002
	100Hz-1MHz		0.01	0.0002
	Square wave		0.01	0.0002
Diode	5V, Test current:1mA		0.010+0.030	0.0010+0.0020
Breakover	1kΩ, Test current:1mA		0.010+0.030	0.0010+0.0020
Capacitance	1.0000nF		1.0+0.5	0.02
	10.000nF-1.0000mF		0.5+0.1	0.02
	10.000mF		1.0+0.5	0.02
Temperature	PT100(DIN/IEC 751)		±0.05°C
Temperature	5 kΩ Thermistor		±0.10°C

Multimetri

CST-222 (multimetro digitale EVSE) – Tester digitale per wallbox

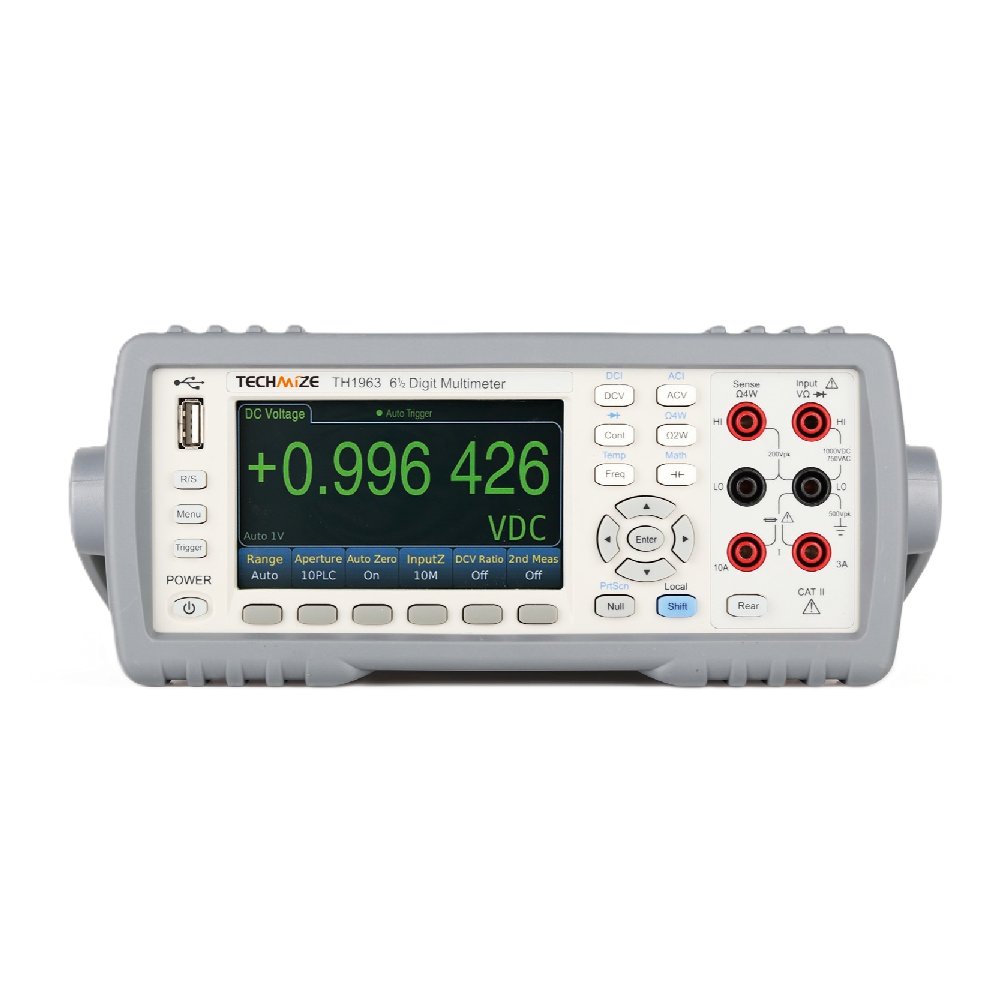

TH1963 – Multimetro digitale 6 1/2 cifre
